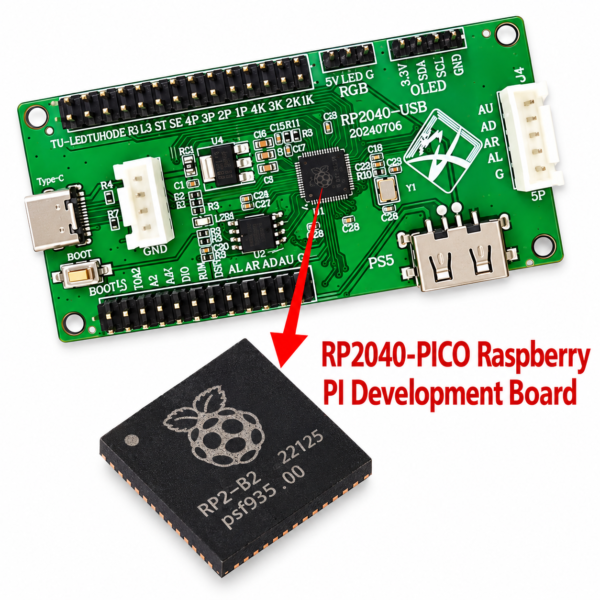

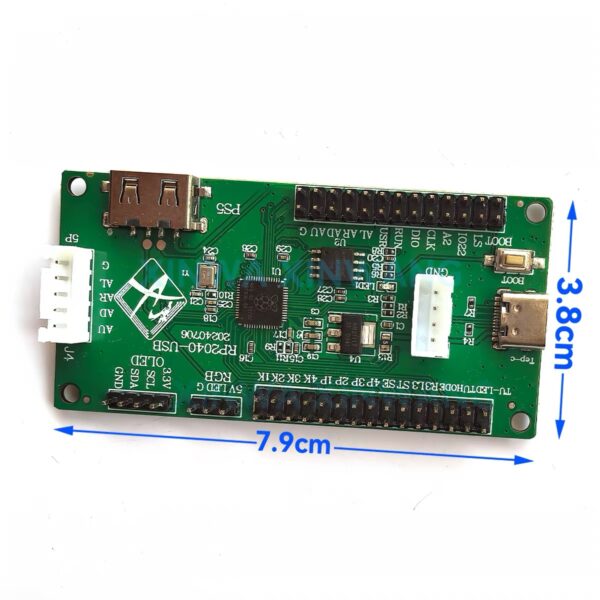

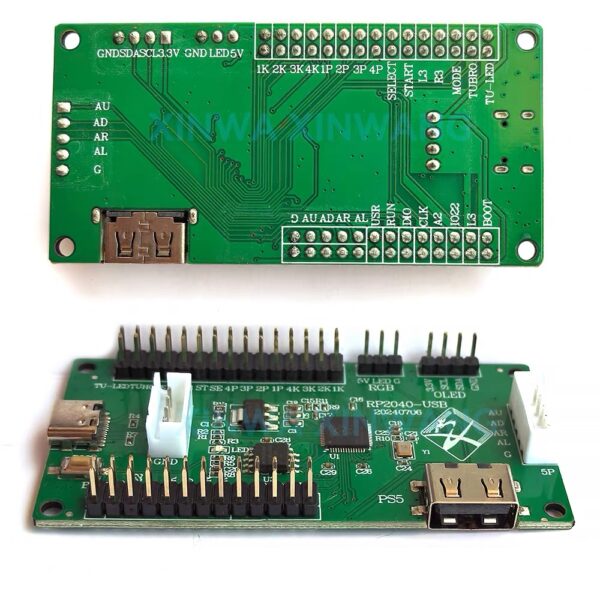

Raspberry Pi PICO RP2040 Fighting Board (RP2040-USB)
Build your own tournament-ready arcade controller around the Raspberry Pi PICO. This compact RP2040 board delivers low-latency, zero-delay input that is ideal for fighting games and custom control panels — precise, responsive and easy to wire up.

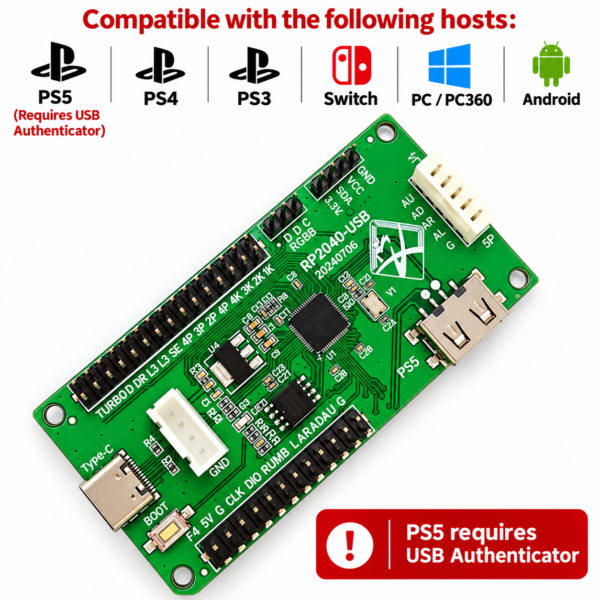

Compatible with
- PlayStation 5 (requires a USB Authenticator — use the onboard USB-A passthrough port)
- PlayStation 4
- PlayStation 3
- Nintendo Switch
- PC / PC360
- Android
Features
- Zero-delay performance: low-latency RP2040 (Raspberry Pi PICO) core built for fast, accurate fighting-game input.
- USB-C, plug-and-play: connects over USB-C with no additional drivers required.
- Onboard USB-A passthrough: dedicated port for the PS5 USB Authenticator.

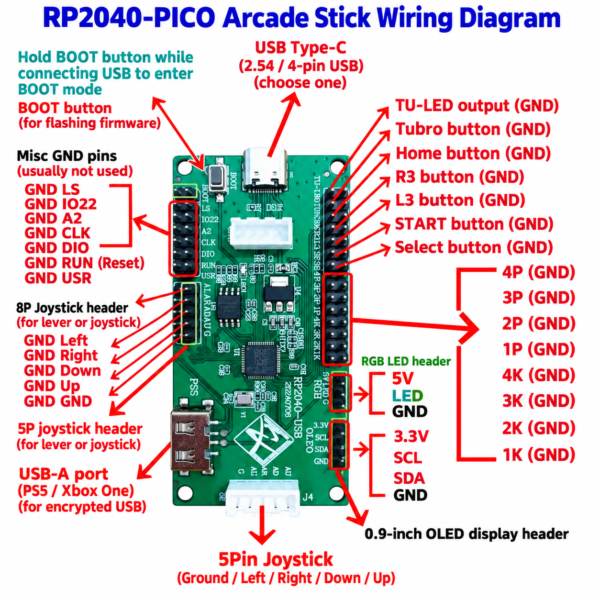

- Full button header: solder/harness pads for all directions and buttons, plus Turbo, L3/R3, SE and extra function inputs.
- BOOT button for easy firmware flashing.
- Mounting holes for a clean install inside your case.
Specifications
- Core: Raspberry Pi PICO (RP2040-USB)
- Interface: USB-C (board) + USB-A passthrough (PS5 authenticator)
- Compatibility: PS5, PS4, PS3, Switch, PC / PC360, Android
- Firmware language: English version
Board only — buttons, wiring harness and case are not included. A USB Authenticator is required for PS5 use and is sold separately.
