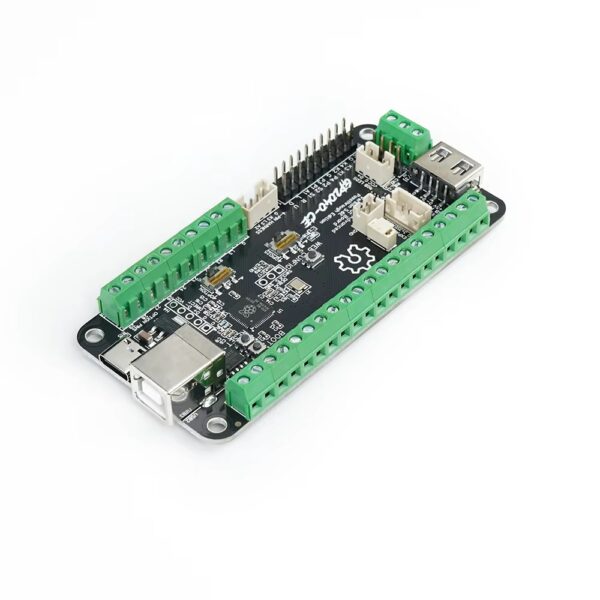

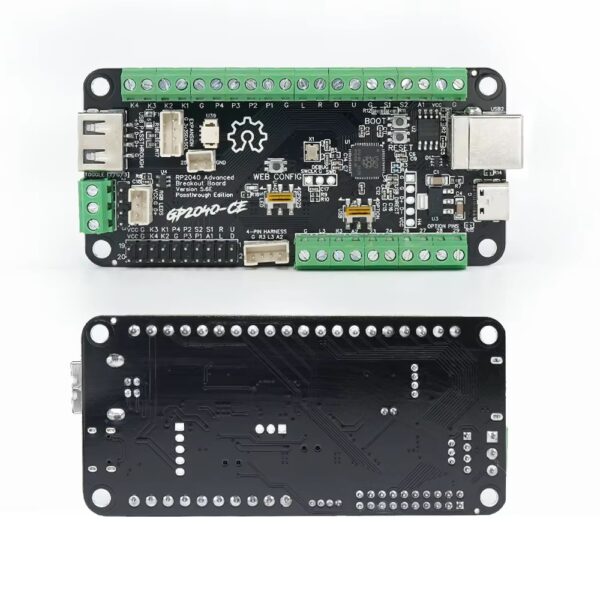

The GP2040-CE RP2040 Advanced Breakout Board (Version 5.6E, Passthrough Edition) is a powerful all-in-one PCB solution for building or upgrading your fightstick or leverless controller. Powered by the Raspberry Pi RP2040 chip and running the popular open-source GP2040-CE firmware, it delivers pro-level features and wide platform support — just wire your buttons and controls, plug in, and play.
- Wide platform support: PC (Windows & Mac), Nintendo Switch, PlayStation 3, PlayStation 4 & PlayStation 5 (via USB passthrough authentication), Steam Deck, Android, MiSTer FPGA and Raspberry Pi.
- Selectable input modes: XInput, Nintendo Switch, PS3/PS4/PS5, DirectInput/HID and Keyboard mode.
- USB Passthrough: onboard USB passthrough port lets you pass a licensed controller’s authentication through for extended PS4/PS5 compatibility.
- Web Configurator: plug into a PC and configure pin mapping, input mode, RGB, turbo and SOCD cleaning directly in your browser — no software install needed.
- RGB LED & OLED support: dedicated headers for addressable RGB LEDs and an OLED status display for a fully customised build.

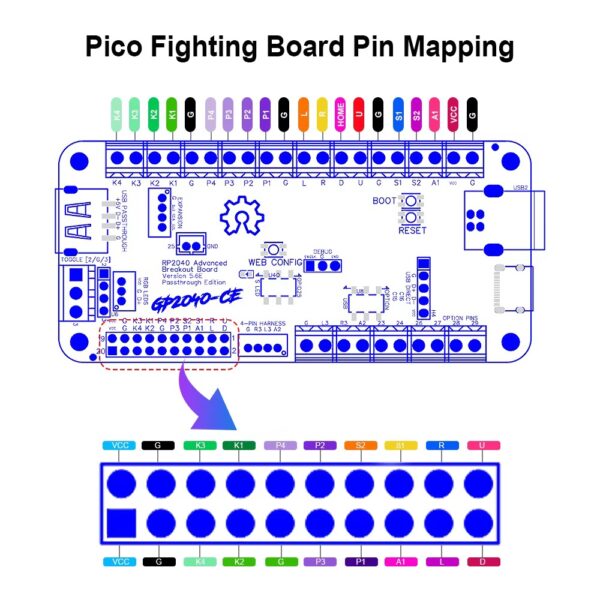

- Easy wiring: clearly labelled screw terminals plus 20-pin, 4-pin and expansion harness headers for fast, solder-free assembly.
- Ultra-low latency with built-in SOCD cleaning and turbo functionality for competitive play.

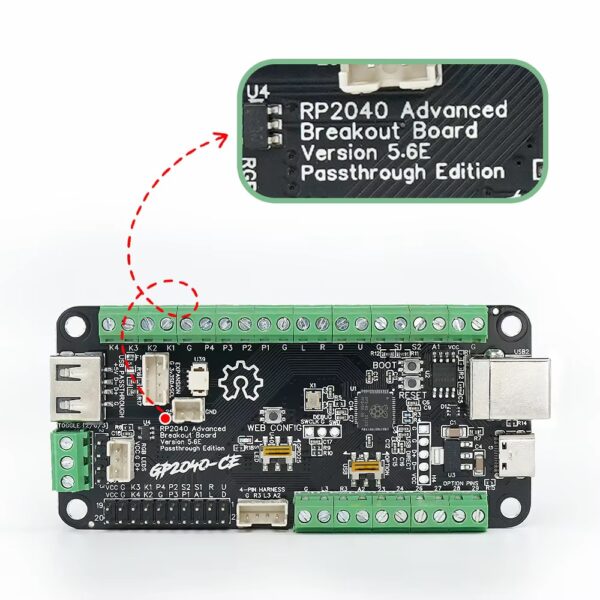

What it is: RP2040 Advanced Breakout Board, Version 5.6E — Passthrough Edition, running GP2040-CE firmware. Ideal for DIY leverless (hitbox) and arcade stick builds.
