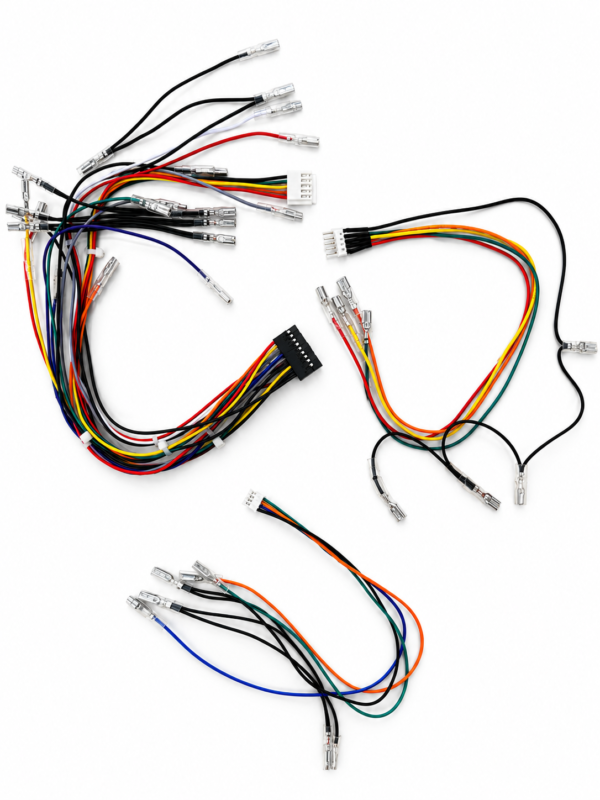

This combo bundles all three harnesses for building an All-Button (leverless) fighting stick, solder-free.

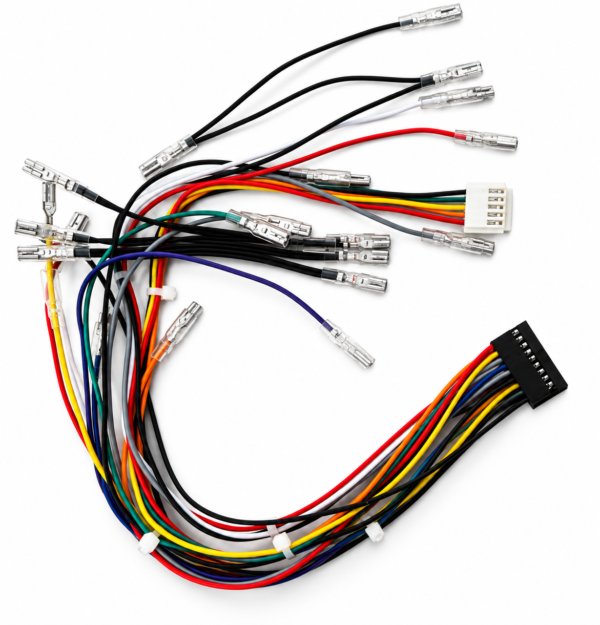

The 20-pin harness connects your action/option buttons to a fighting board using the standard 20-pin (2×10) header — compatible with Brook Gen-5X and other boards using the same layout.
The 5-pin all-button conversion harness plugs into the joystick connector to enable All-Button (leverless) control. Direction wiring follows SANWA JLF colour coding (Orange: Up, Red: Down, Yellow: Left, Green: Right, Black: GND).

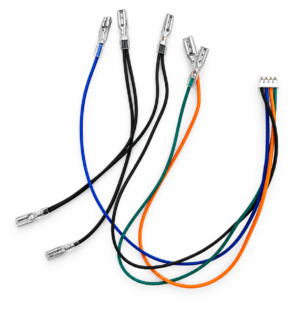

The 4-pin function-button harness adds L3/R3 and touchpad button inputs (touchpad simulation available on supported boards). All terminals are .110″ female quick-disconnects compatible with mainstream Sanwa, Seimitsu and GamerFinger buttons. Button functions may vary depending on your fighting board version — please check your board’s manual.
