OLED Display with Cable

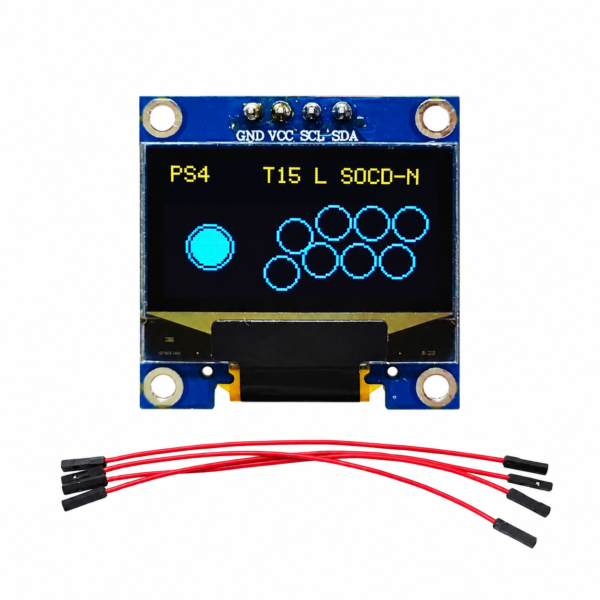

Add a live status screen to your arcade stick or leverless controller. Connect it to the OLED header on an RP2040 / Raspberry Pi PICO fighting board and it shows the current input mode (for example PS4), turbo and SOCD settings, and a live view of the stick and buttons as you press them.
Features

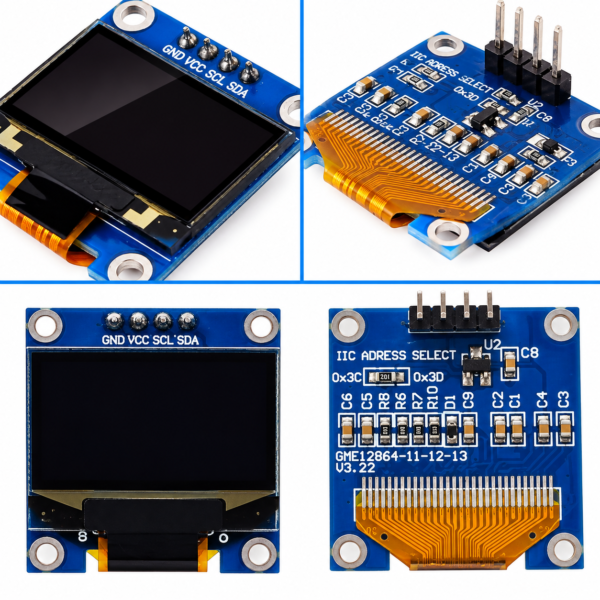

- 0.96-inch OLED, 128×64 pixels: sharp and easy to read, with no backlight needed.
- Two-tone screen: yellow top strip for status text, blue area for the button layout.
- Simple 4-pin I2C connection: GND, VCC, SCL, SDA.
- Selectable I2C address (0x3C / 0x3D) on the back of the board.
- Four mounting holes to fix it inside your case.
- Cable included: 4-wire female-to-female jumper cable, ready to plug in.
Specifications
- Screen size: 0.96 inch
- Resolution: 128 × 64
- Interface: I2C (4-pin: GND, VCC, SCL, SDA)
- Works with: RP2040 / PICO fighting boards with an OLED header, such as our RP2040-PICO Zero Delay Fighting Board
In the box
- 1 × 0.96″ OLED display module
- 1 × 4-pin connecting cable
The screen only works if your board and its firmware support an OLED display. Check your board before you buy, or message us on WhatsApp if you are not sure.
