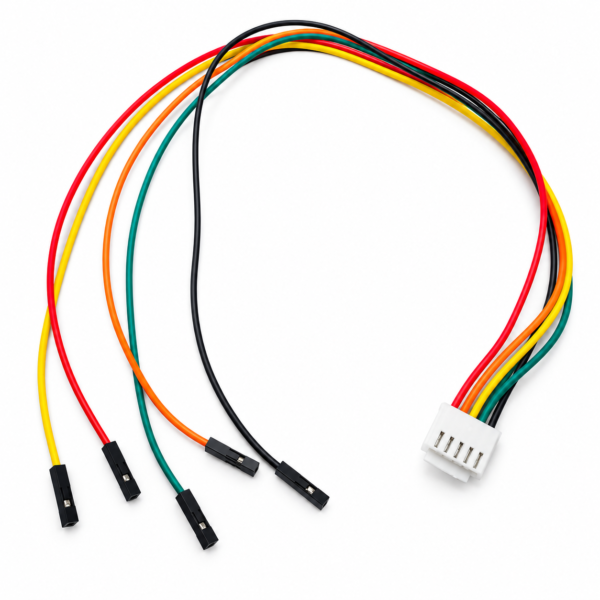

5-Pin Joystick Cable

5-Pin Joystick Cable

Wire your joystick to your fighting board without soldering. Plug the 5-pin connector into the joystick, then push each single connector onto its matching pin on the board: Up, Down, Left, Right and GND.

Features

• 5-pin lever connector for joysticks with a standard 5-pin socket.

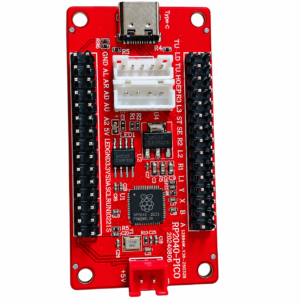

• Five single female connectors (2.54 mm) that fit the pin headers on RP2040 / PICO and other zero-delay fighting boards, such as our RP2040-PICO Zero Delay Fighting Board.
• Colour-coded wires make each direction easy to identify.
• Useful if your board has direction pins instead of a 5-pin joystick socket, or if you want to remap the directions.

Specifications

• Joystick end: 5-pin female connector
• Board end: 5 × single 2.54 mm female connectors
• Wires: 5 (GND, Up, Down, Left, Right)

In the box

• 1 × 5-pin joystick cable

Check that your joystick has a 5-pin socket before you buy. Wire colours can vary by batch, so follow the pin order on your joystick. Message us on WhatsApp if you are not sure.
