Crown / Samducksa Knee Lever — Neo Edition
The Knee Lever Neo is Samducksa’s signature lever for Jae-min “Knee” Bae of DRX, one of the most decorated Tekken players in the world. Knee is a four-time EVO champion, and much of his success came on his own custom lever, built from parts he chose after years of testing. Samducksa worked with him, and with feedback from other pro Tekken players, to put that setup into one production lever.

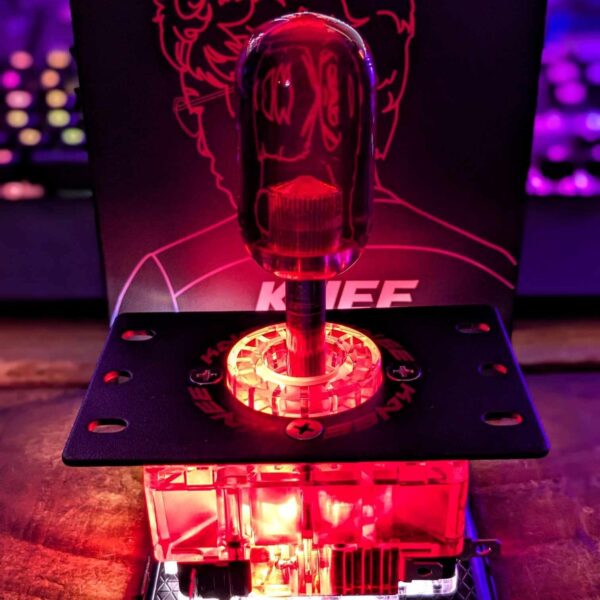

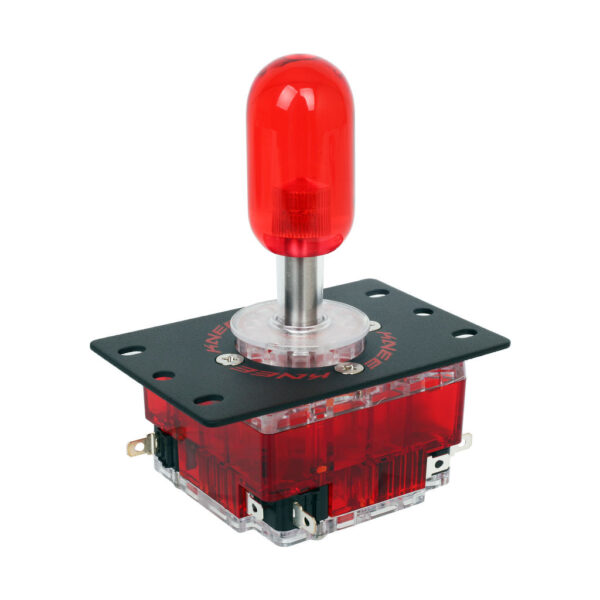

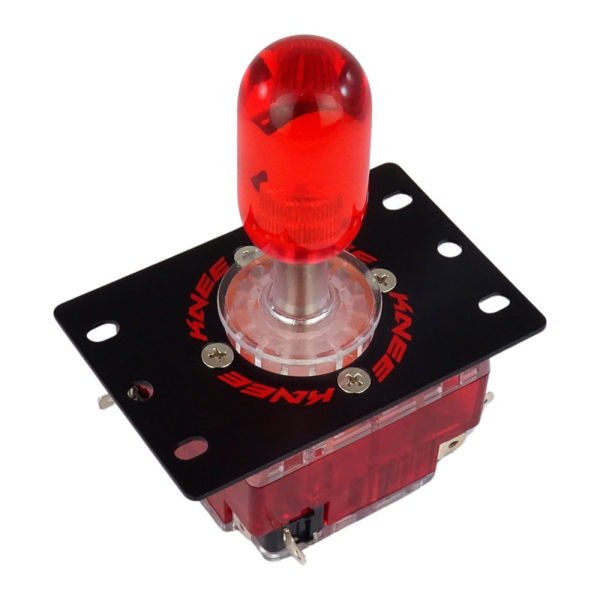

The result is a lever made for high-level Tekken: a rubber grommet tuned specifically for Knee-style play, a large 16.1mm actuator, wide-hinge Gersung switches and a clear circle-square gate, all wrapped in a striking clear-and-red body.
Why it stands out
- Tuned by a world champion. The 30+ tension grommet is made specifically for this lever and gives a very fast return to neutral. Players often say it snaps back almost the instant you let go.
- Wide-hinge switches. Three Gersung A3KN wide-hinge switches plus one standard Gersung A3 give a crisp, consistent click.
- Circle-square gate in clear polycarbonate.
- Low-profile collar and JLF-style plate, so it can go into many sticks built for Sanwa levers, as long as there is enough room inside.
- Swappable tension. The grommet can be exchanged for other Samducksa tension rings to change the weight.
Specifications
| Brand | Crown / Samducksa (South Korea) |
| Grip | Clear red acrylic capsule handle |
| Shaft | Stainless steel |
| Dust cover / shaft washer | Clear polycarbonate |

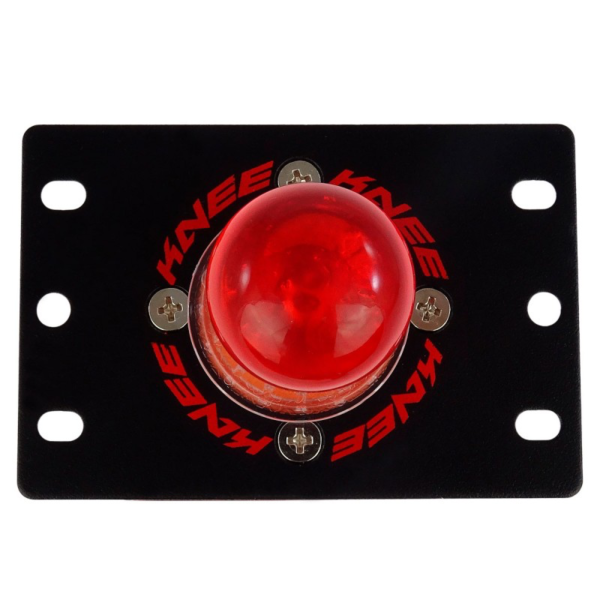

| Mounting plate | 1.6mm steel, coated and printed, JLF-compatible holes |
| Collar | Low-profile 35mm, clear polycarbonate |
| Bottom housing | Clear red polycarbonate |
| Tension | 30+ rubber grommet, made for Knee players (no spring) |

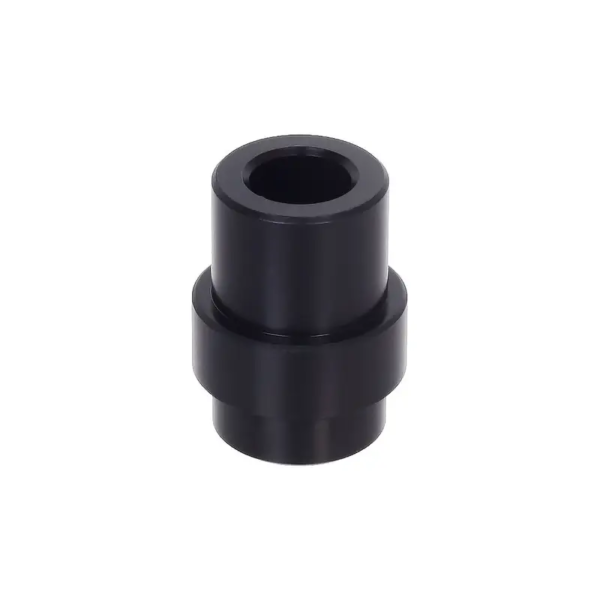

| Bobbin / actuator | Acetal / 16.1mm acetal |

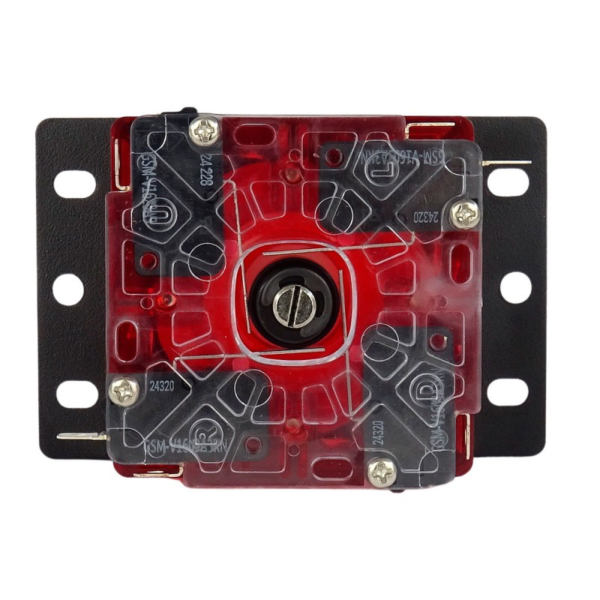

| Microswitches | 3x Gersung A3KN wide-hinge + 1x Gersung A3 |
| Gate | Circle-square, clear polycarbonate |
| Size | About 95 x 83 x 118mm with shaft; base 38mm tall |
Good to know
- This is a big lever. You need at least about 65mm width, 97mm length and 43mm height of space inside the case, so it will not fit slim or compact sticks.
- Some players find its throw a little longer than other Korean levers, so give yourself a few sessions to adjust.
- Korean levers use .187 inch tab switches. If your stick’s PCB uses a Sanwa-style 5-pin lever plug, you will need a 5-pin to 8-pin harness (sold separately).
- Not sure if it fits your case? WhatsApp us your stick model and we will check for you.
